Masterpiece Collection Manufactured by the Micro Artist Studio Slim model with manual winding
Spring Drive movement

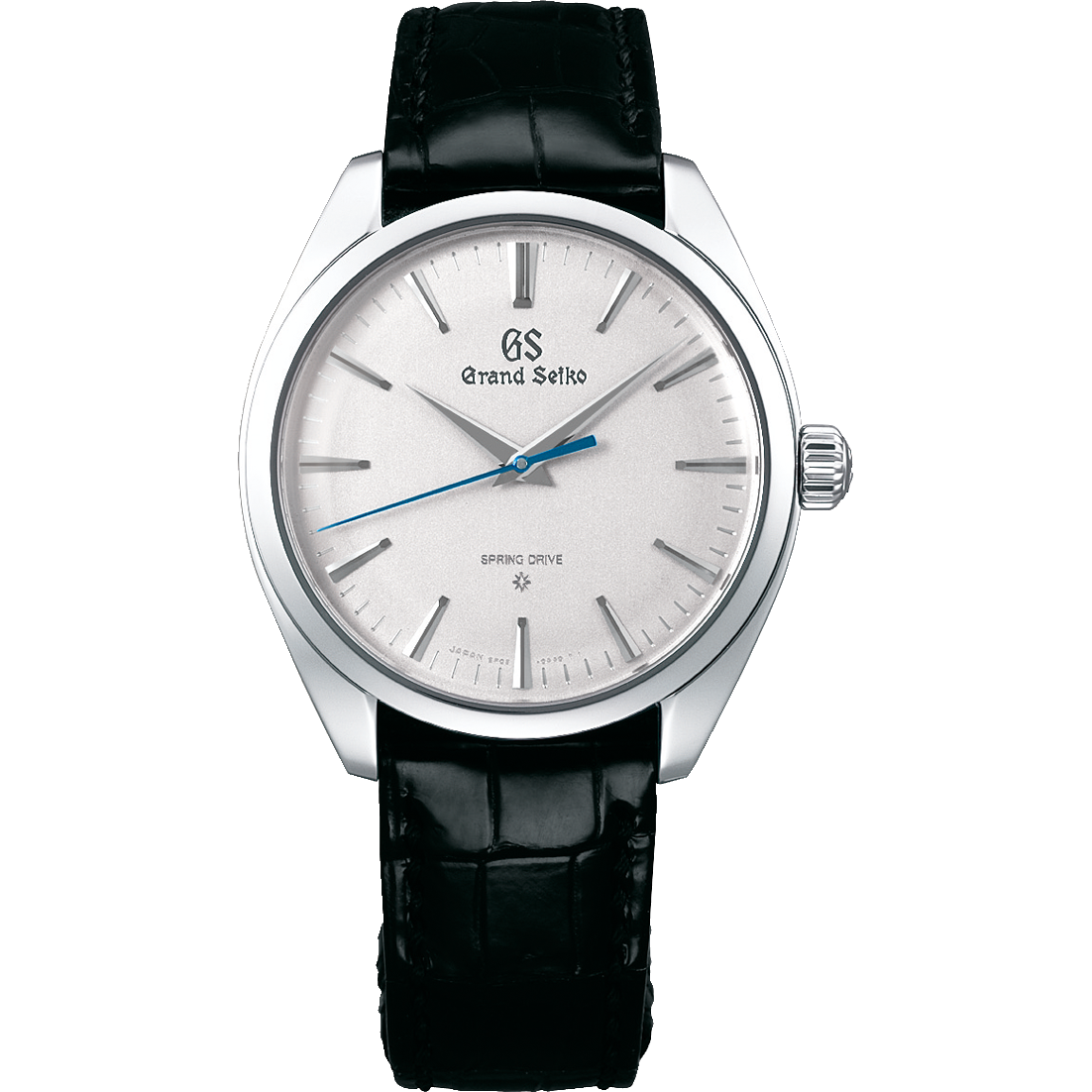

SBGZ003

An exceptional model equipped with a manual winding Spring Drive movement that showcases the skills of Takumi

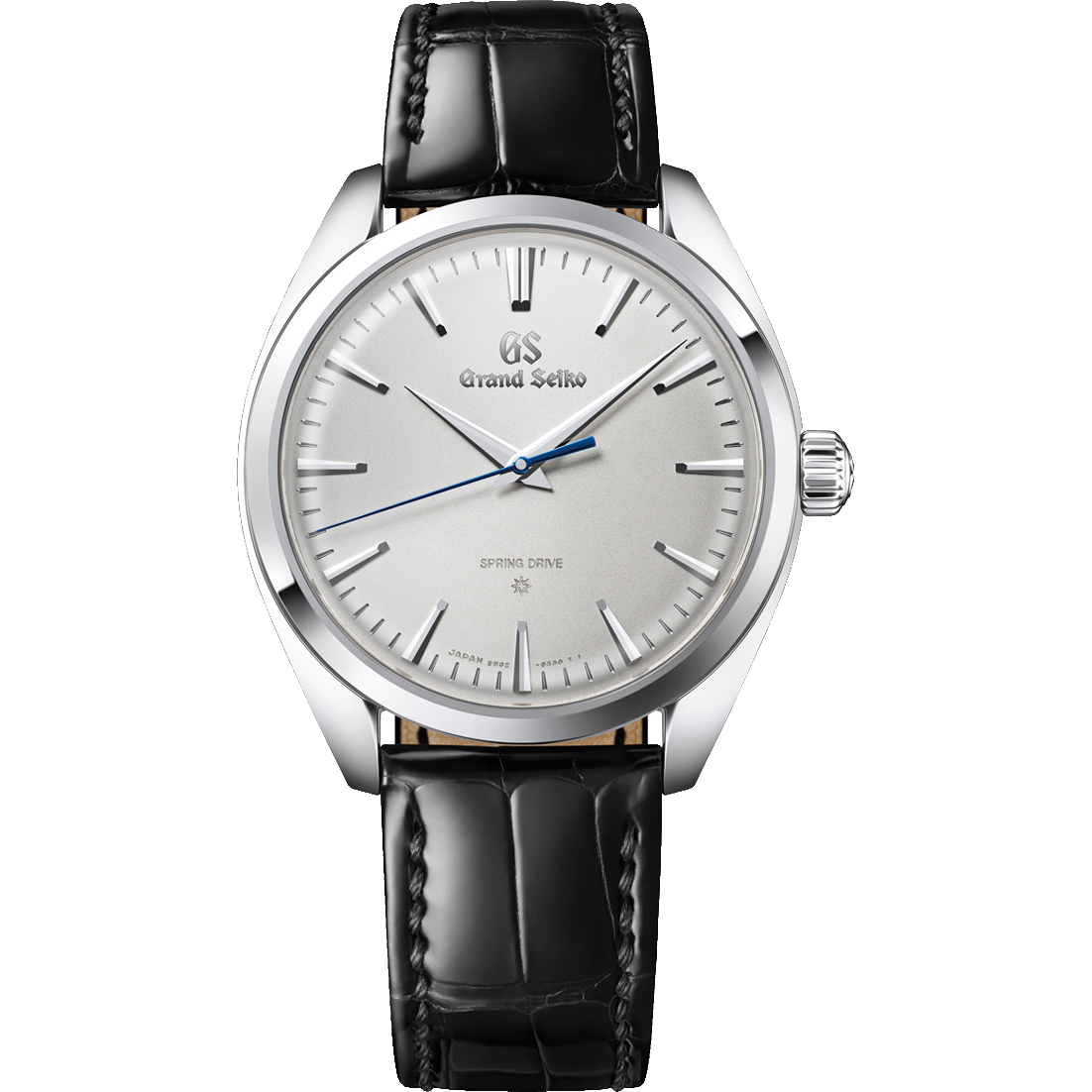

SBGZ003J

SBGZ003

Masterpiece Collection

  • Available at the Grand Seiko Boutiques and Grand Seiko Salons

Features

The Micro Artist Studio is responsible for the highest-end Spring Drive models. Its work is carried out by the craftsmen and women of this esteemed studio, who possess the highest levels of experience and skill. These elite craftspeople have combined their skills to bring this creation, a manual-winding Spring Drive model which houses Caliber 9R02, to life.
Caliber 9R02 combines the Dual-Spring Barrel and the Torque Return System, which achieves a power reserve of approximately 84 hours. The movement is housed within a slender Platinum 950 case, which is polished beautifully by master craftsmen.
Its elegant contours are created through superior polishing techniques, and the dial is designed based on a careful process of subtraction of design elements. With these features, this model shows its uniqueness in every detail.

Specifications

Exterior
Exterior: Platinum
Case back: See-through & Screw case back
Glass Material: Dual-curved sapphire crystal
Glass Coating: Anti-reflective coating on inner surface
Case size: Diameter 38.5mm Lug-to-lug 43.7mm Thickness 9.8mm
Band width: 19mm
Band Material: Crocodile leather
Clasp type: Three-fold clasp with push button release
Movement
Caliber no.: 9R02 Instructions
Movement Type: Spring Drive Manual winding
Power reserve: Approx. 84 hours
Accuracy: ±15 seconds per month (±1 second per day)
Functions
Water resistance: Splash Resistant
Magnetic resistance: 4,800 A/m
Weight: 102 g
Other details / Features:
  • Platinum 950 clasp (partly PT900)
  • Power reserve indicator

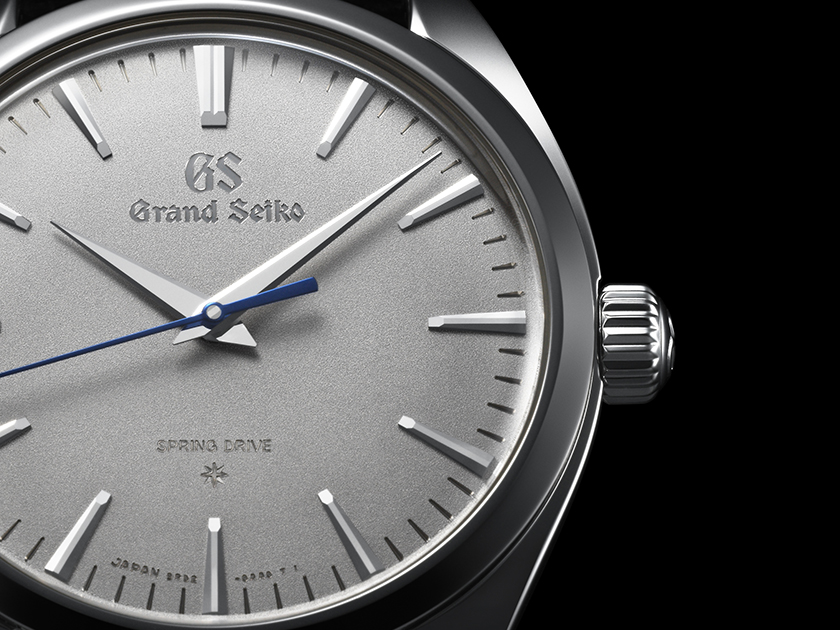

A dial crafted in the pursuit of elegance

The dial adopts a minimalist design.
Without sacrificing legibility, it shows various expressions only by the three-demensional design of the metal parts, without using any printing.
The light gray color of the dial is reminiscent of a scenery of the forests of the Shinshu region, covered with snow.
The logo and minute track are engraved, and the indexes and hands, made of white gold, produce a subtle light across the surface.

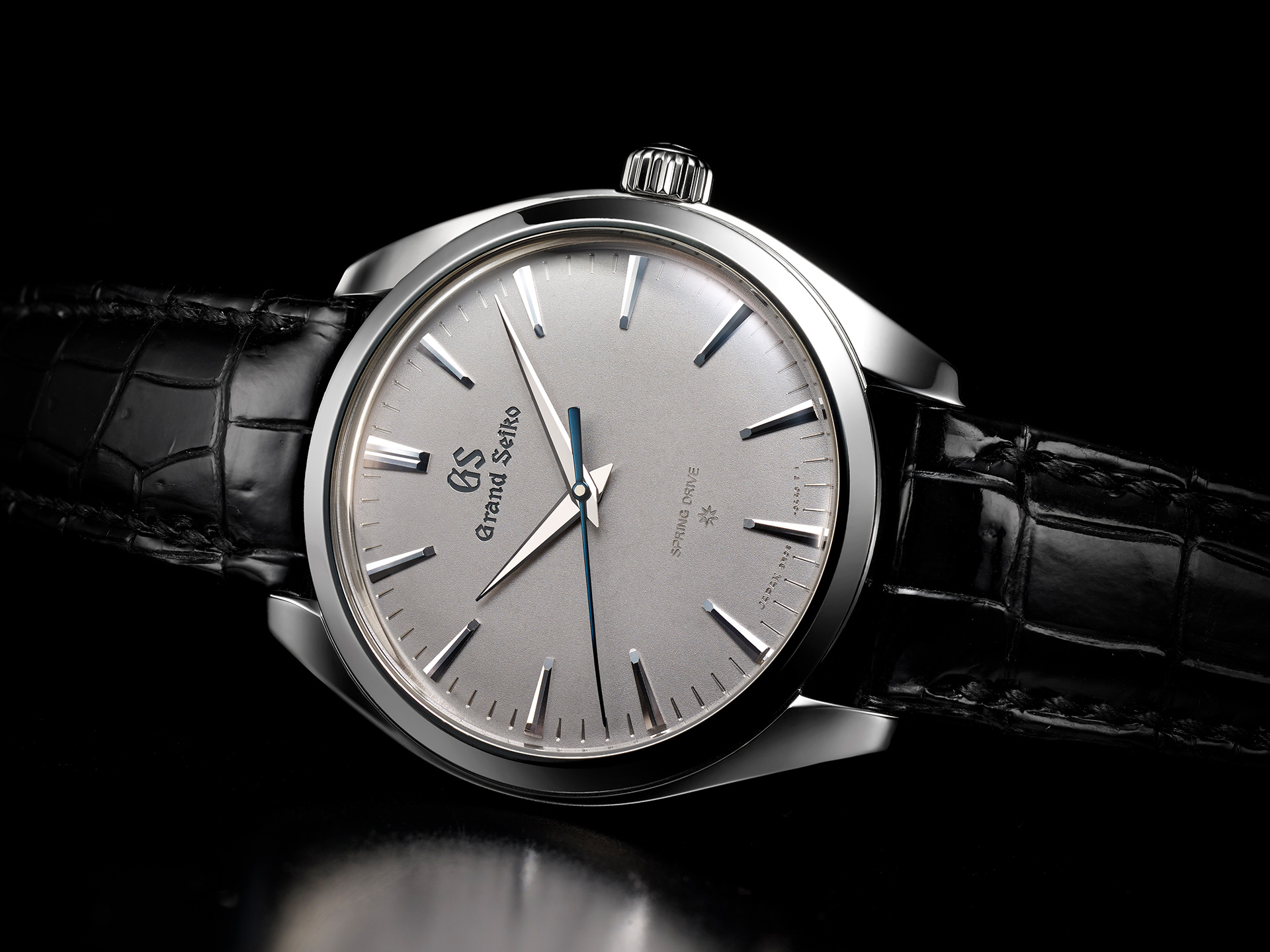

Refined beauty produced through the skills of master craftsmen and women

Flexibility and tension are combined in its shape, producing light that plays across a subtle ridgeline. It is reminiscent of a polished jewel.
Platinum shines brilliantly with no distortion, creating a highly refined aesthetic.

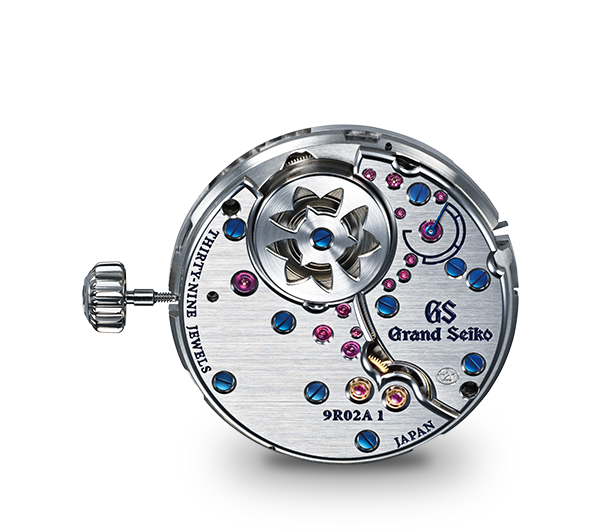

Caliber 9R02

This manual winding Spring Drive movement is produced in the Micro Artist Studio.
The Dual-Spring Barrel, in which two mainsprings are fitted within the same barrel, is combined with the Torque Return System to achieve the power reserve of 84 hours.
To ensure the beautiful appearance of the dial, the power reserve indicator is located on the case back.

Details of Caliber 9R02
