Manual 8-Day Spring Drive
All Spring Drive movements already offer a remarkable 72 hours of power reserve. The challenge was clear. Could this be extended still further?

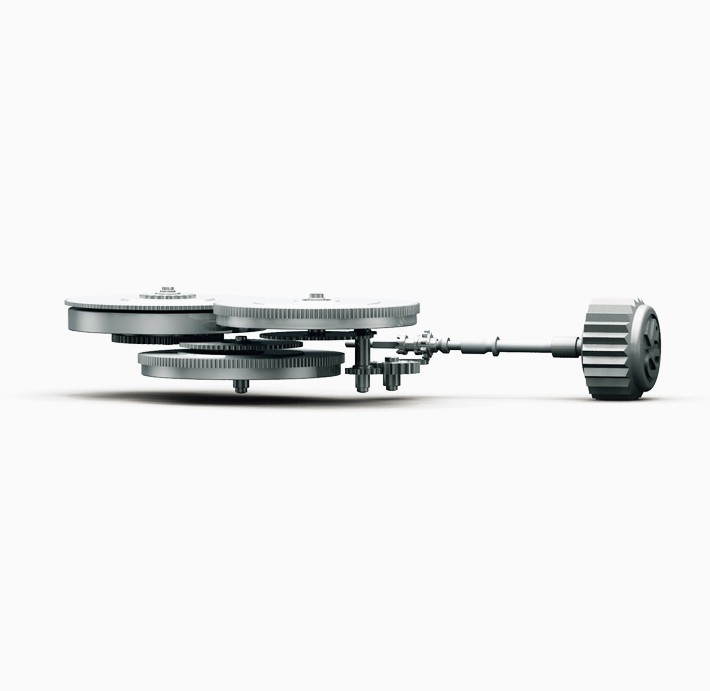

The team at the Micro Artist Studio thought so and the Grand Seiko 8-Day Spring Drive is the result. To maintain perfect timekeeping for up to eight days (192 hours) requires greatly increased power, which is provided by a linked series of three barrels. This remarkable caliber, 9R01, has also been designed throughout to maximize energy efficiency, reducing friction between parts that would otherwise lead to loss in the transmission of the energy derived from the mainspring.
|Winding mechanism||Manual winding|
|Accuracy||±0.5 seconds per day (±10 seconds per month)|
|Power reserve||Approximately 192 hours|
|Number of jewels||56 jewels|
|Features||-Power reserve indicator
-Quick correction function of time difference
What makes 9R Spring Drive special?
Spring Drive, one of the great innovations in modern watch making history, regulates a spring-driven movement with state-of-the-art electronic technology that functions without batteries or other external power source. Its sole power source is a mainspring, which drives a series of gears. A rotor, connected to the end of these gears, generates a small electrical charge that activates an electronic circuit and quartz oscillator. Its accuracy is unprecedented for a watch wound by a mainspring. The development of the 9R Spring Drive movement was possible only because Grand Seiko is one of the few manufacturers with expertise in both mechanical and electronic watches.
Caliber 9R01 Models
9R Spring Drive Movement
The three movements at the heart of Grand Seiko
One of the world's foremost mechanical movements, the culmination of high-precision micro-engineering and the attention to detail of Seiko's expert watchmakers.
Spring Drive is a unique movement that delivers one-second-a-day precision, using just the power of a mainspring.
